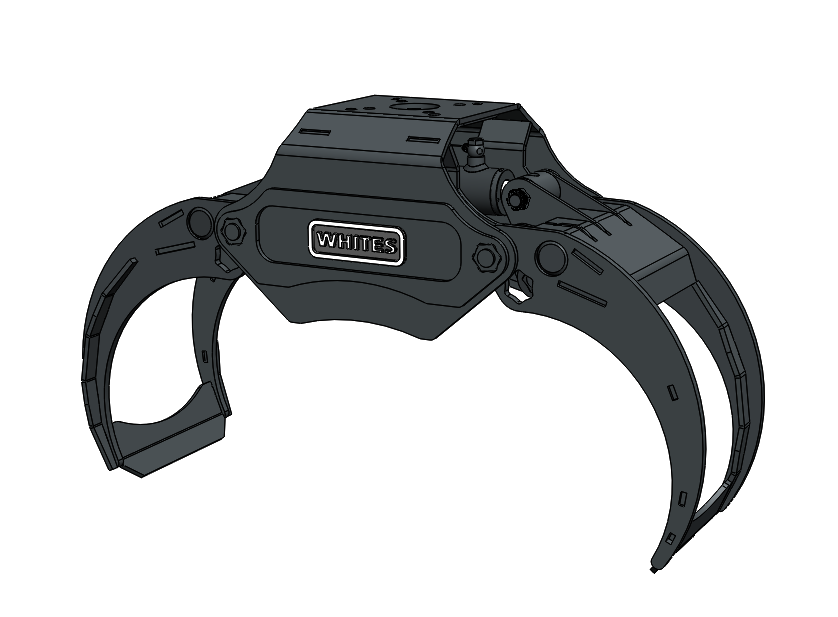

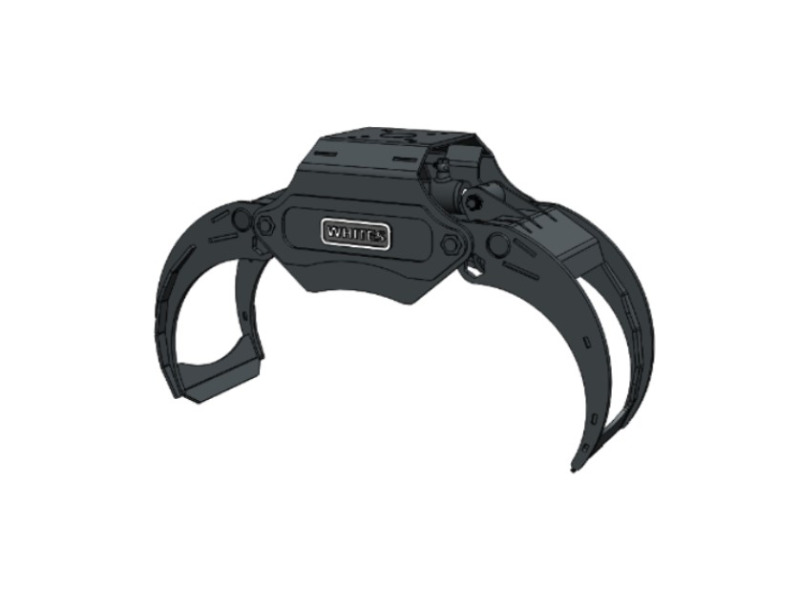

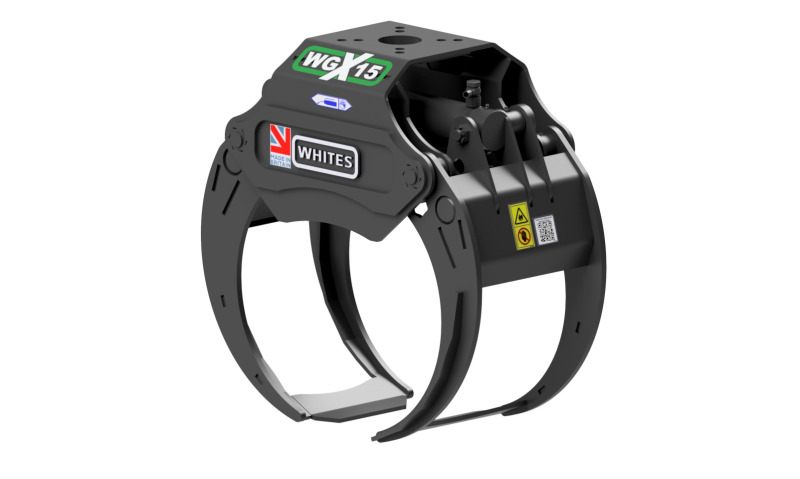

WGX 4 Finger Log Grab
The WGX grapple range is designed to suit machines from 1.5t – 9.0 tonnes proudly Made in Britain
- Choice of rotating or fixed
- Perfectly matched with optional rotators from Formiko & AVS
- Optional hydraulic diverter valve kit allowing dual function use from a machine with single auxiliary supply
- Hardox steel
- Greaseable pins
- Stabilising bar
- All units are supplied complete with bracket, hoses and couplings
MODELS
| Weight Range | Fixed Non Rotating | Rotating Dual Auxilary | Rotating Single Auxilary Includes Changeover Valve | Rotator |
| 1.5T – 2.0T | WGX10-4 | WGX10R-4 | WGX10RV-4 | FORMIKO 3FF |
| 2.5T – 3.0T | WGX10-3-4 | WGX10R3-4 | WGX10RV3-4 | FORMIKO 6FF |
| 2.5T – 3.0T | WGX15-4 | WGX15R3-4 | WGX15R3V-4 | FORMIKO 6FF |
| 3.3T – 4.0T | WGX15-4 | WGX15R5-4 | WGX15R5V-4 | AVS – ARH70-2 |
| 5.0T – 6.0T | WGX20-4 | WGX20R5-4 | WGX20R5V-4 | AVS – ARH70-2 |
| 5.0T – 9.0T | WGX20-4 | WGX20R8-4 | WGX20R8V-4 | AVS – ARB80 |

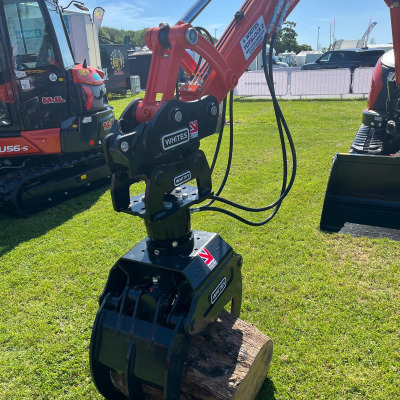

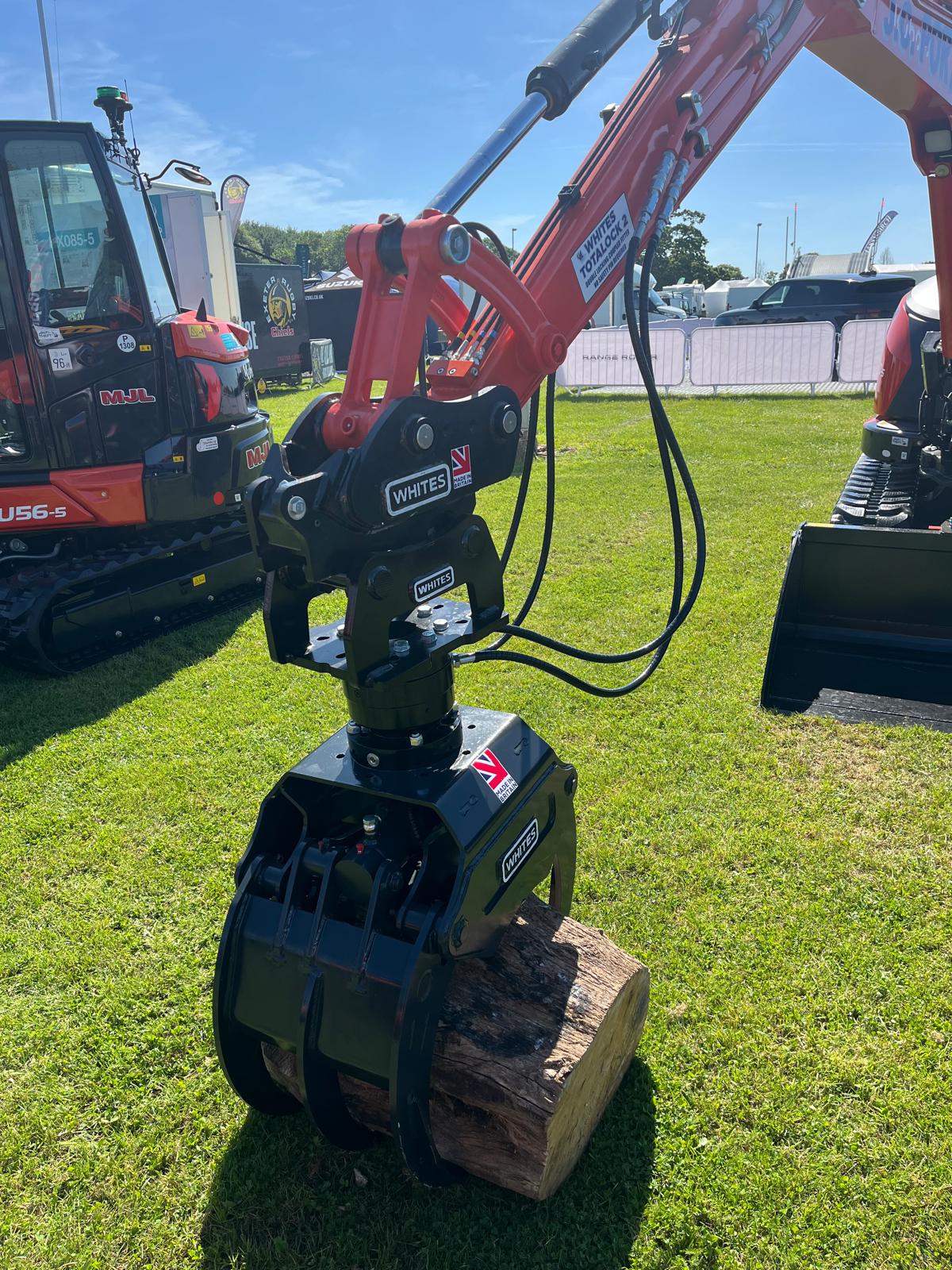

GALLERY
