Grapple Rake
The WHITES Grapple Rakes are the perfect material handling partner for your excavator.
Built with HARDOX steel for maximum strength – grip, grab, rip, rake and clear with one attachment.
Perfect for Land clearance, Forestry, Demolition and material handling.
- Manufactured using HARDOX
- Large Grapple opening
- Serrated tines and grapple arms
- Powerful protected hydraulic cylinder
- Built in check valve for a secure grip
- Bolted head bracket
- Greased hinge points
- Includes hydraulic hoses and flat faced couplers
- Optional worm drive rotation
MODELS
| Model | Machine Size | Rake Width | No. of Rake tines | Rake Depth (grapple closed) | Grapple Opening | Tine Thickness | Tine Gap | Total Weight (excluding Hoses & Bracket) |
| RG500 | 1.5T – 4.0T | 500 mm | 4 | 360 mm | 770 mm | 10 mm | 125 mm | 148 kg |
| RG750 | 4.0T – 7.0T | 750 mm | 5 | 396 mm | 898 mm | 15 mm | 169 mm | 296 kg |
| RG900 | 7.0T – 10T | 900 mm | 5 | 448 mm | 989 mm | 20 mm | 200 mm | 415 kg |
| RG1000 | 10T – 14T | 1000 mm | 5 | 670 mm | 1190 mm | 25 mm | 220 mm | 700 kg |
Optional Worm Drive Rotation
| Description | To Suit | Part No |
| Worm drive rotation kit | RG500 – RG750 | WDRG57-KIT |
| Worm drive rotation kit | RG900 | WDRG90-KIT |
| Worm drive rotation kit | RG1000 | WDRG100-KIT |

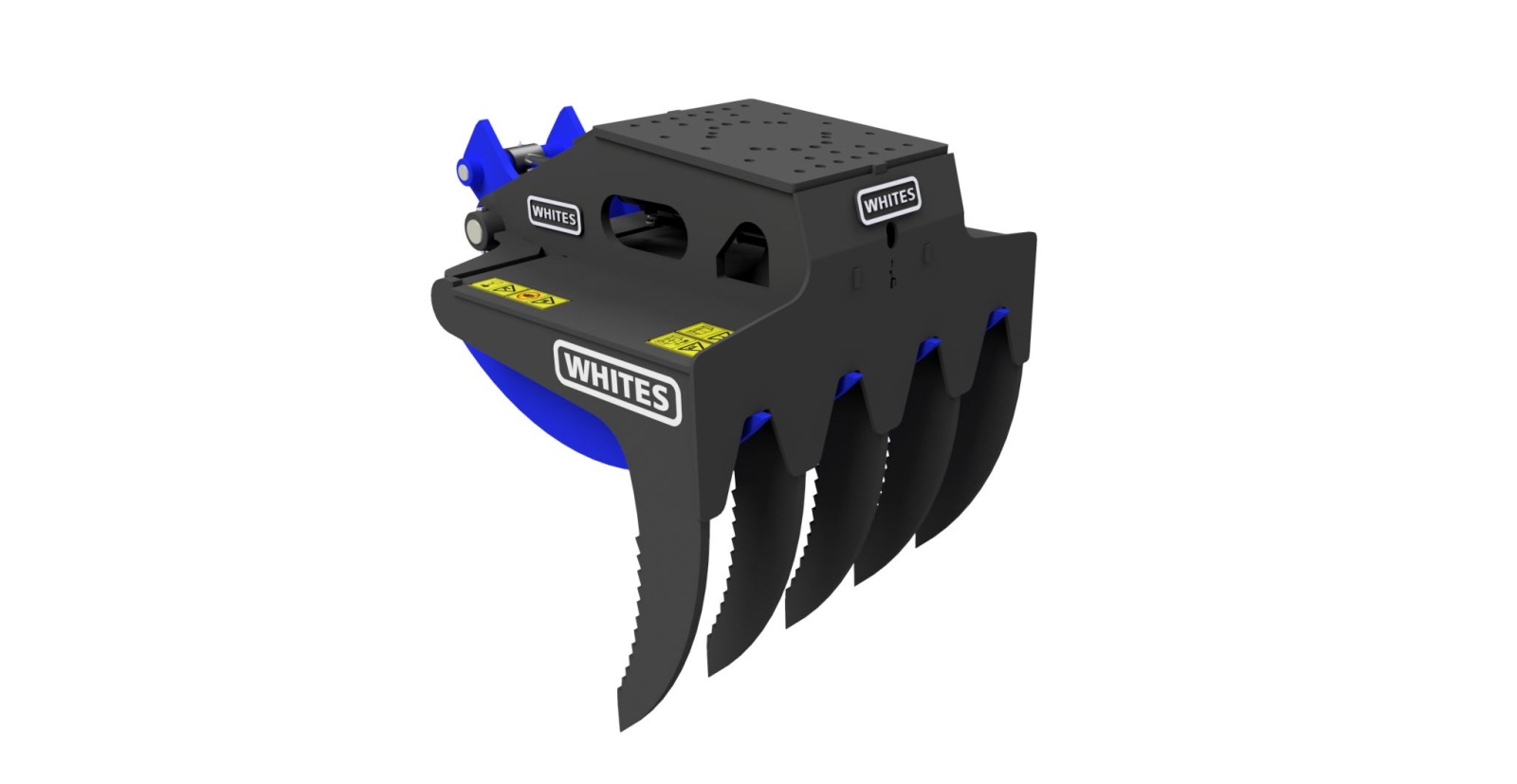

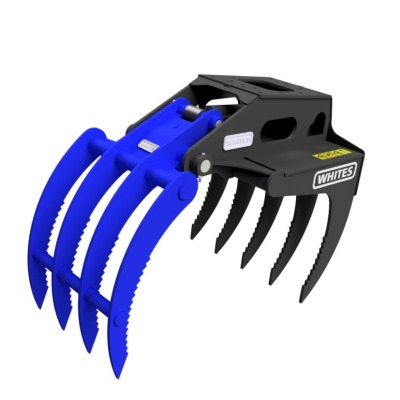

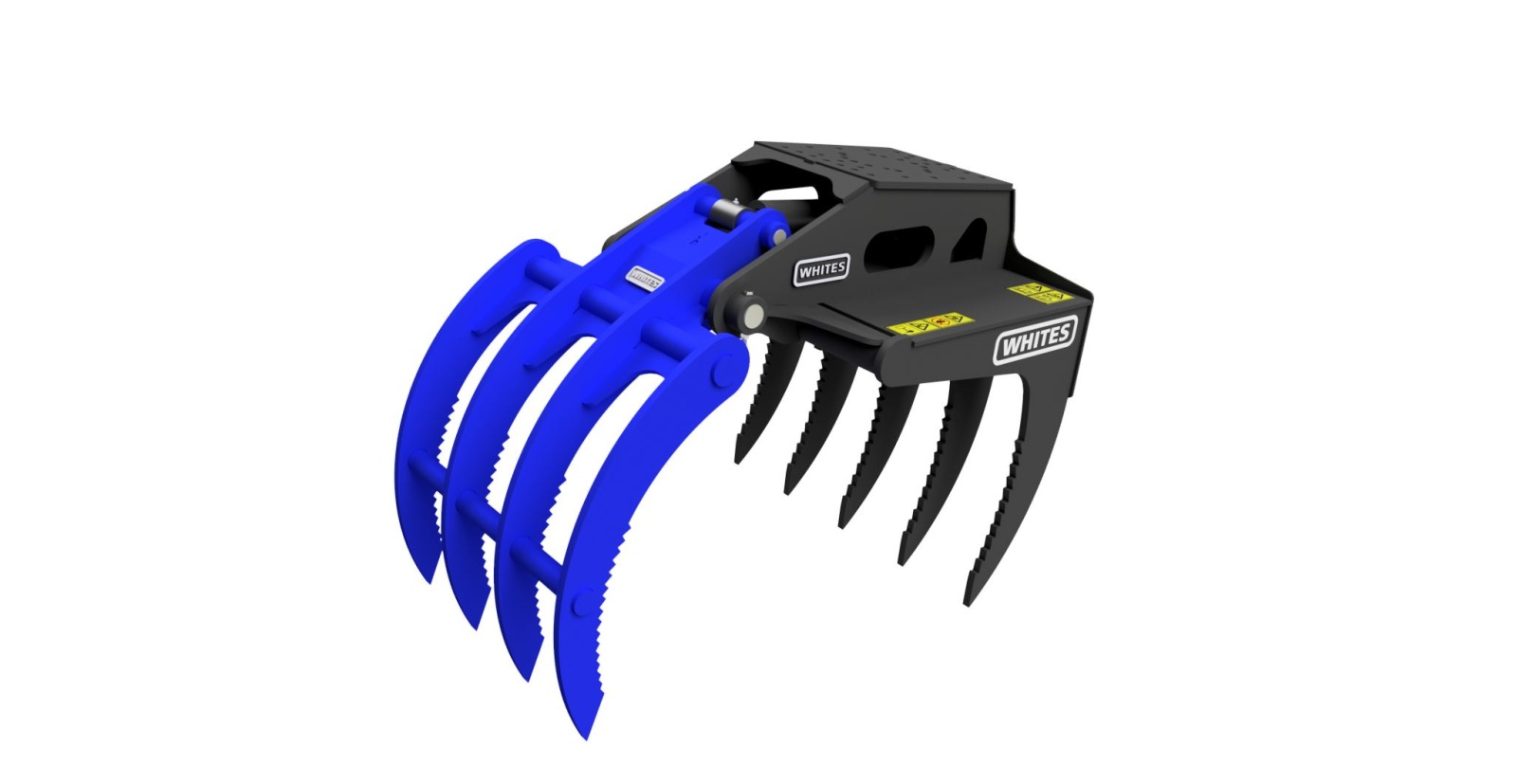

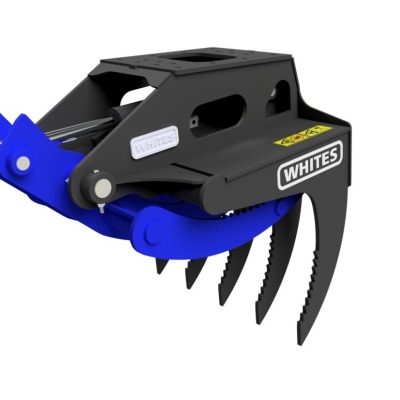

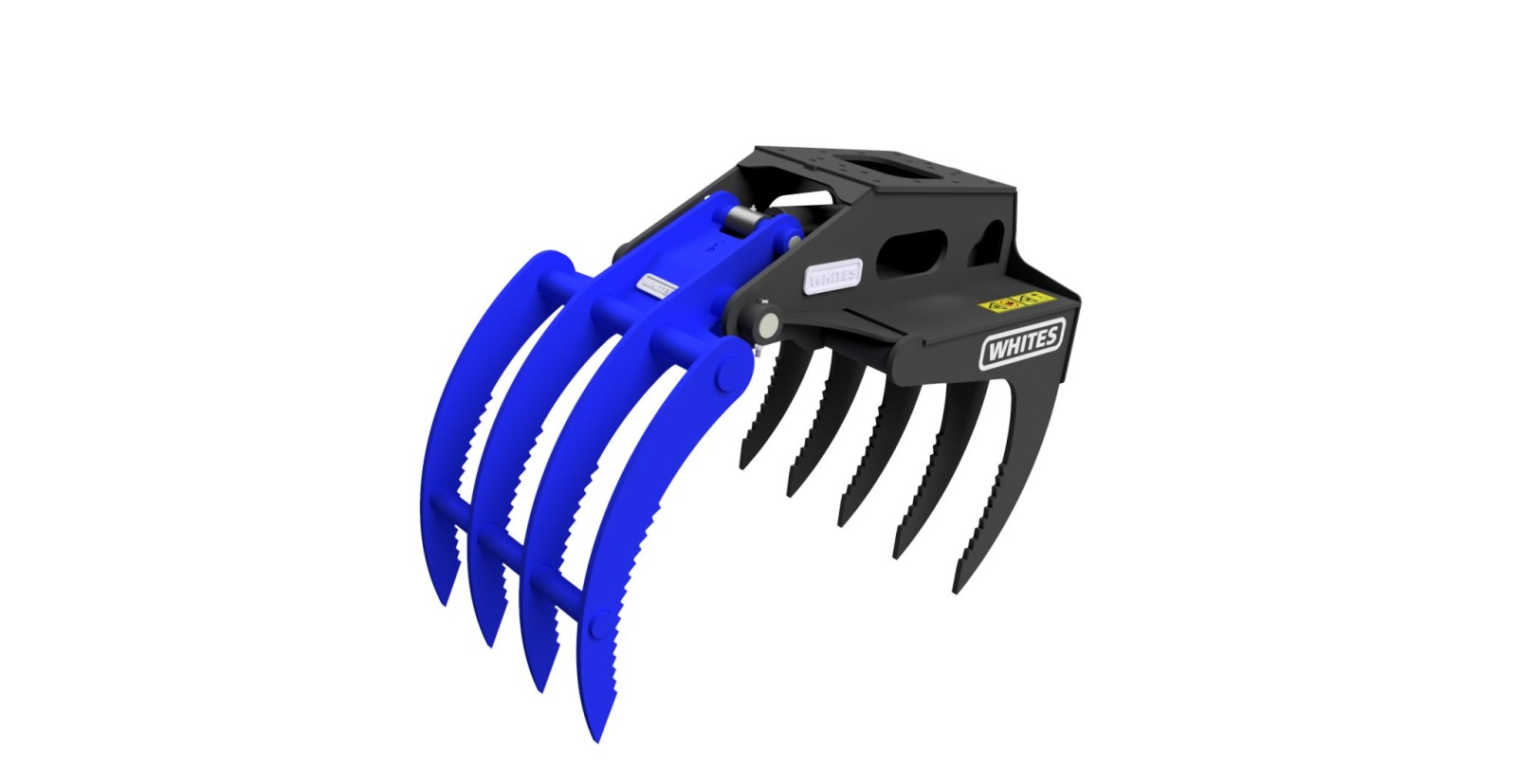

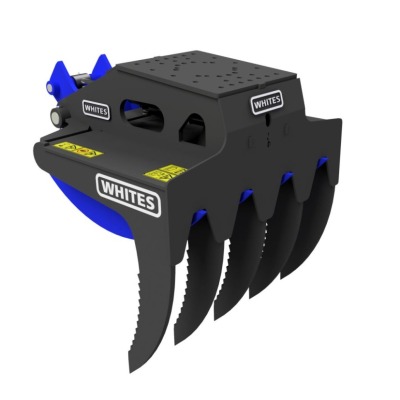

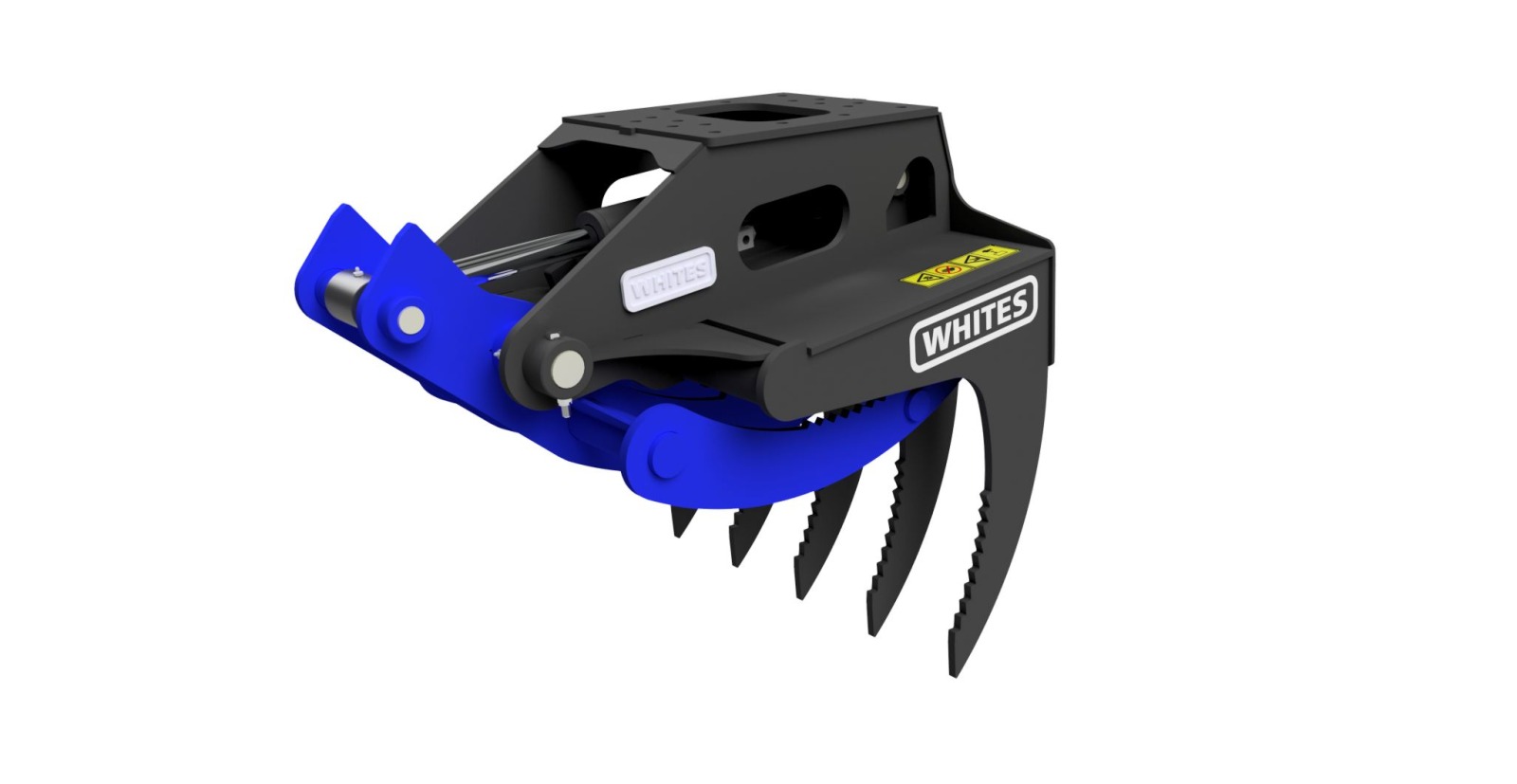

GALLERY
