TILTRO – S-Type
TILTRO translates to trust, confidence, belief.
WHITES are the largest manufacturer of Excavator buckets in the UK, producing OEM approved products for machine’s around the world.
Our range of Scandinavian S-Type specific buckets brings together over 40 years of industry & manufacturing expertise to work in harmony with your machine kinematics.
Suitable for use with all Tilt Rotator style couplers including Engcon, Rototilt, Steelwrist, NOX
- Strenx 700mc body
- Thick wall tube
- HB500 Cutting edge
- HARDOX HB500 Side cutters
- Integrated bucket carry hooks
- Deep profile

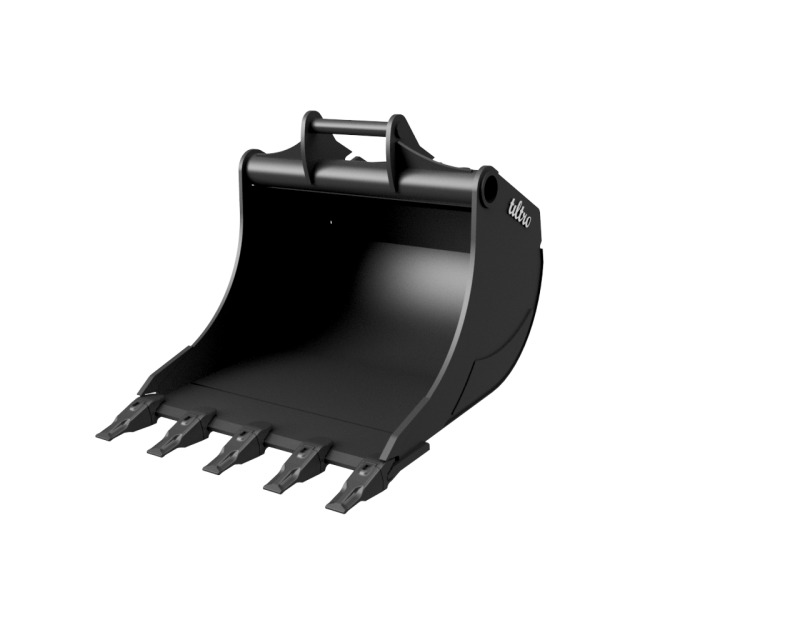

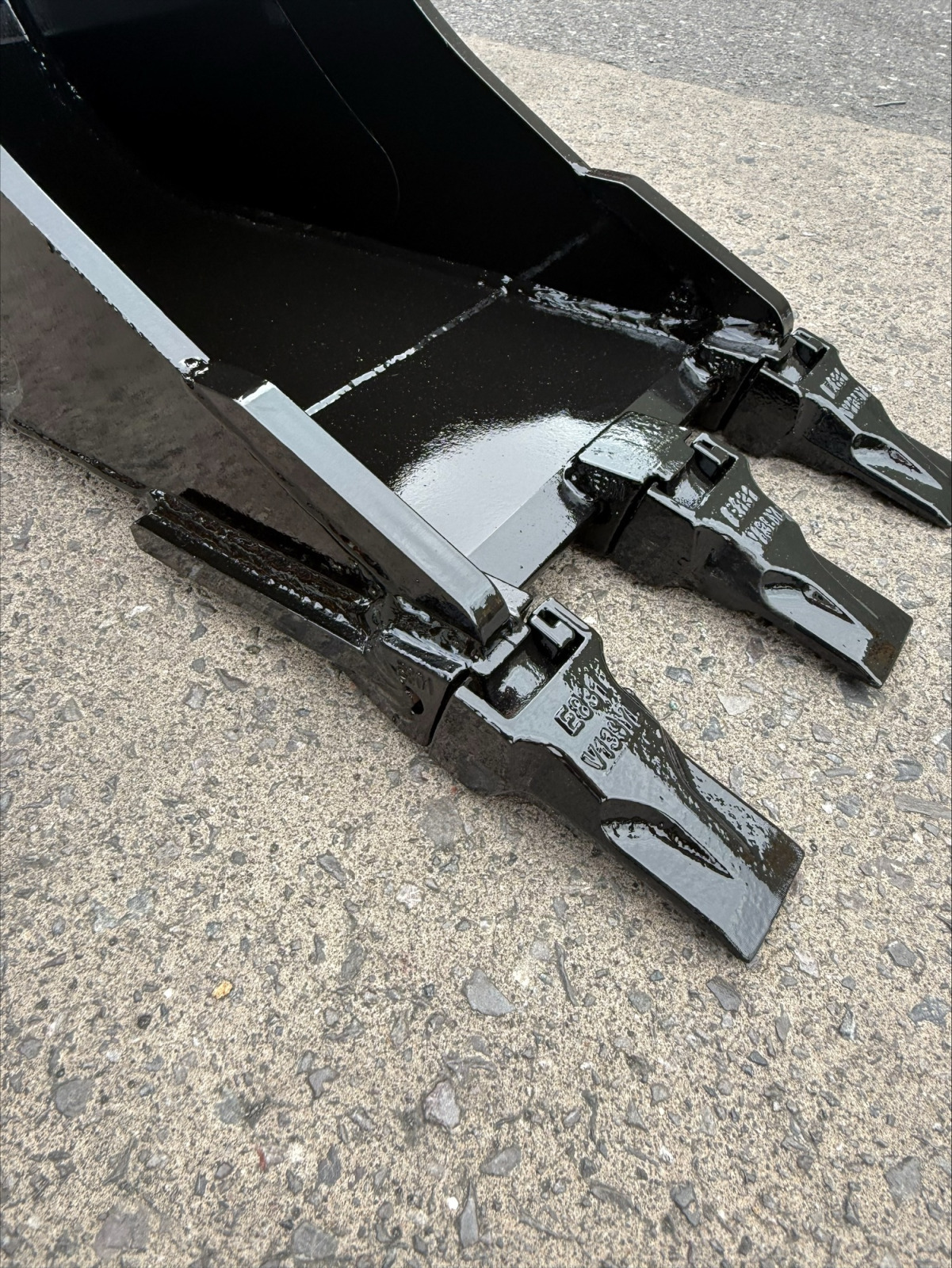

- Non rattle tip and pin tooth systems
- Double radius heel designs maximise machine schematics

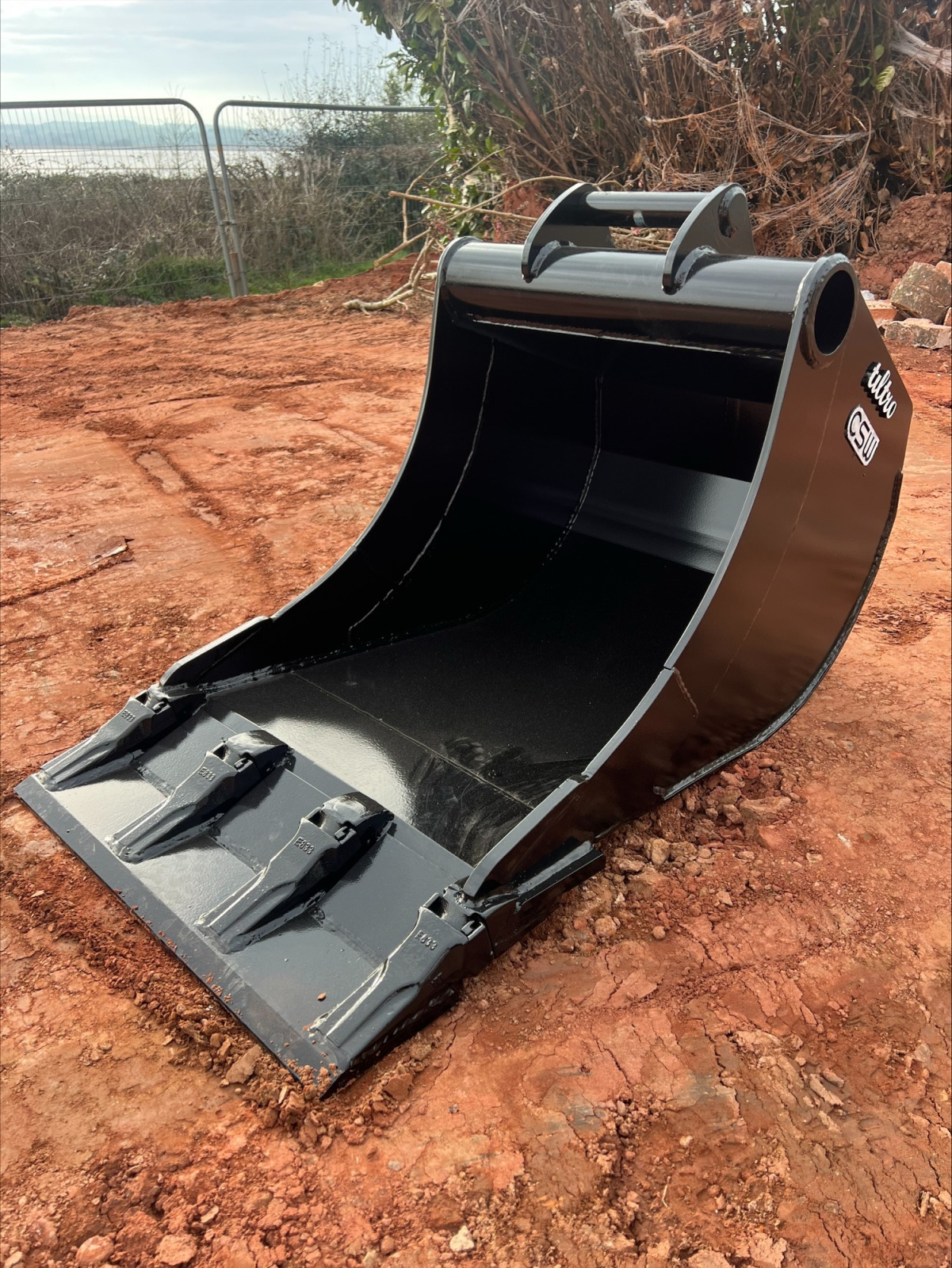

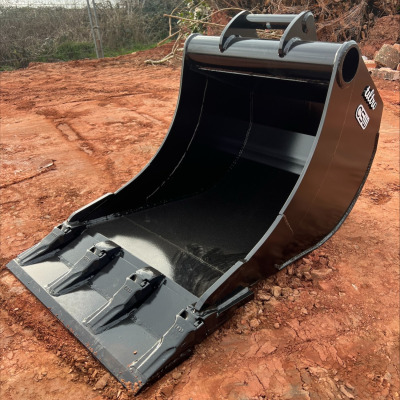

- Optional welded toeplates
- Designed and manufactured in the UK by Whites

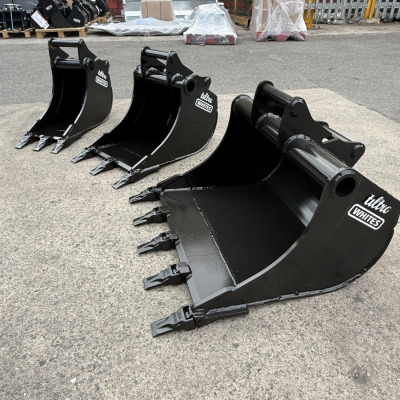

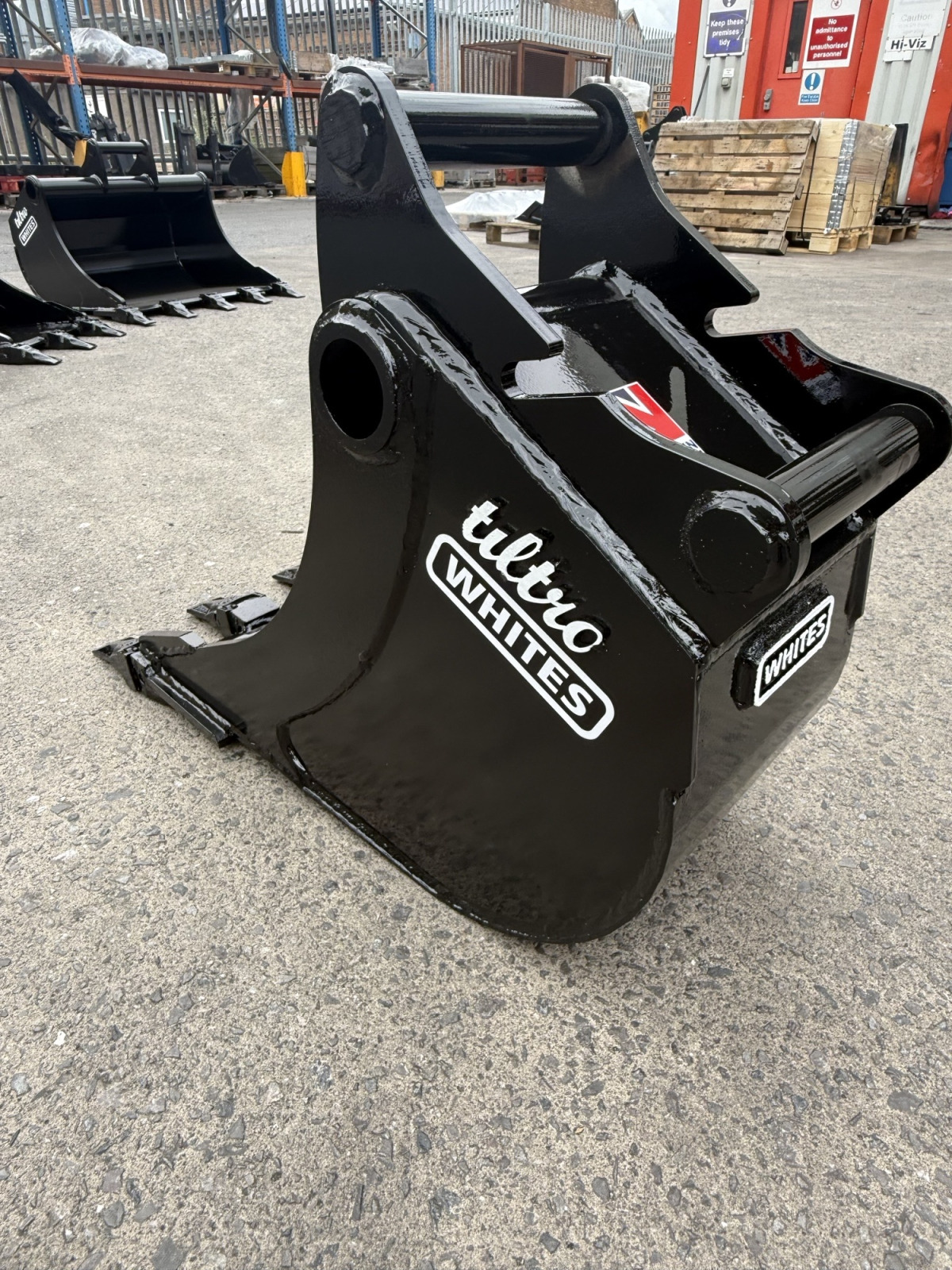

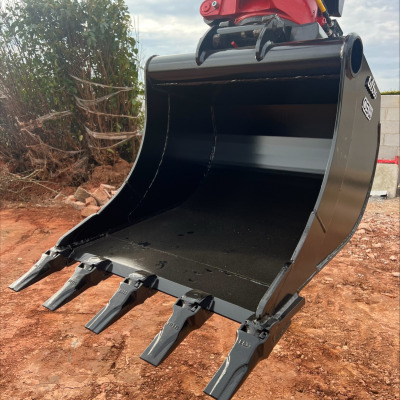

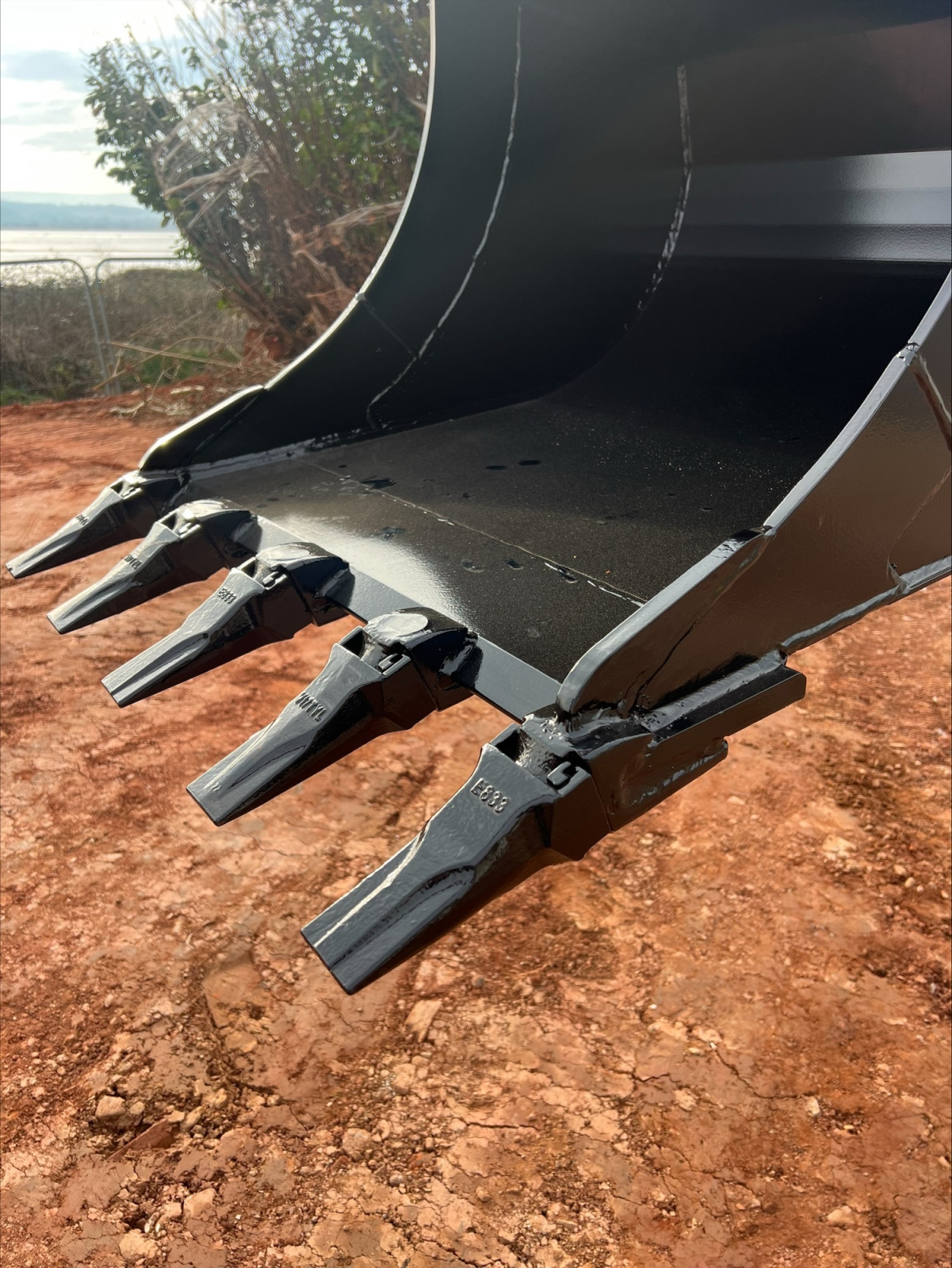

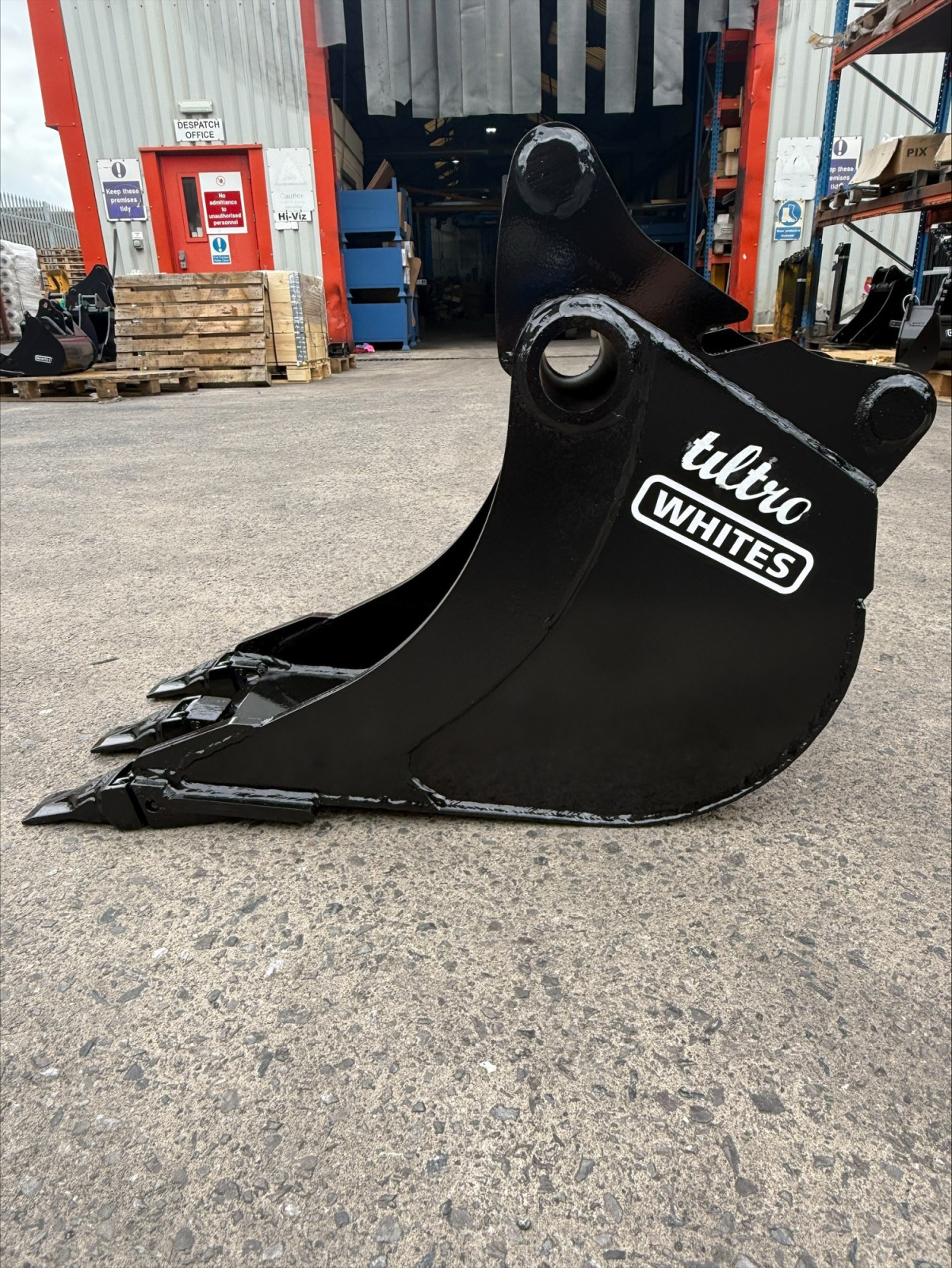

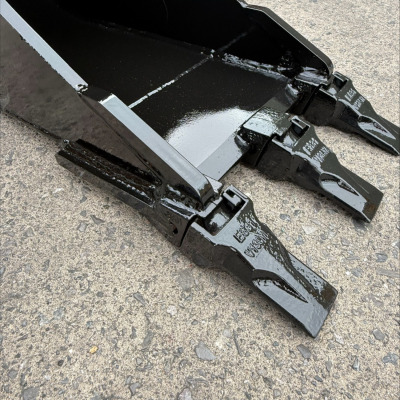

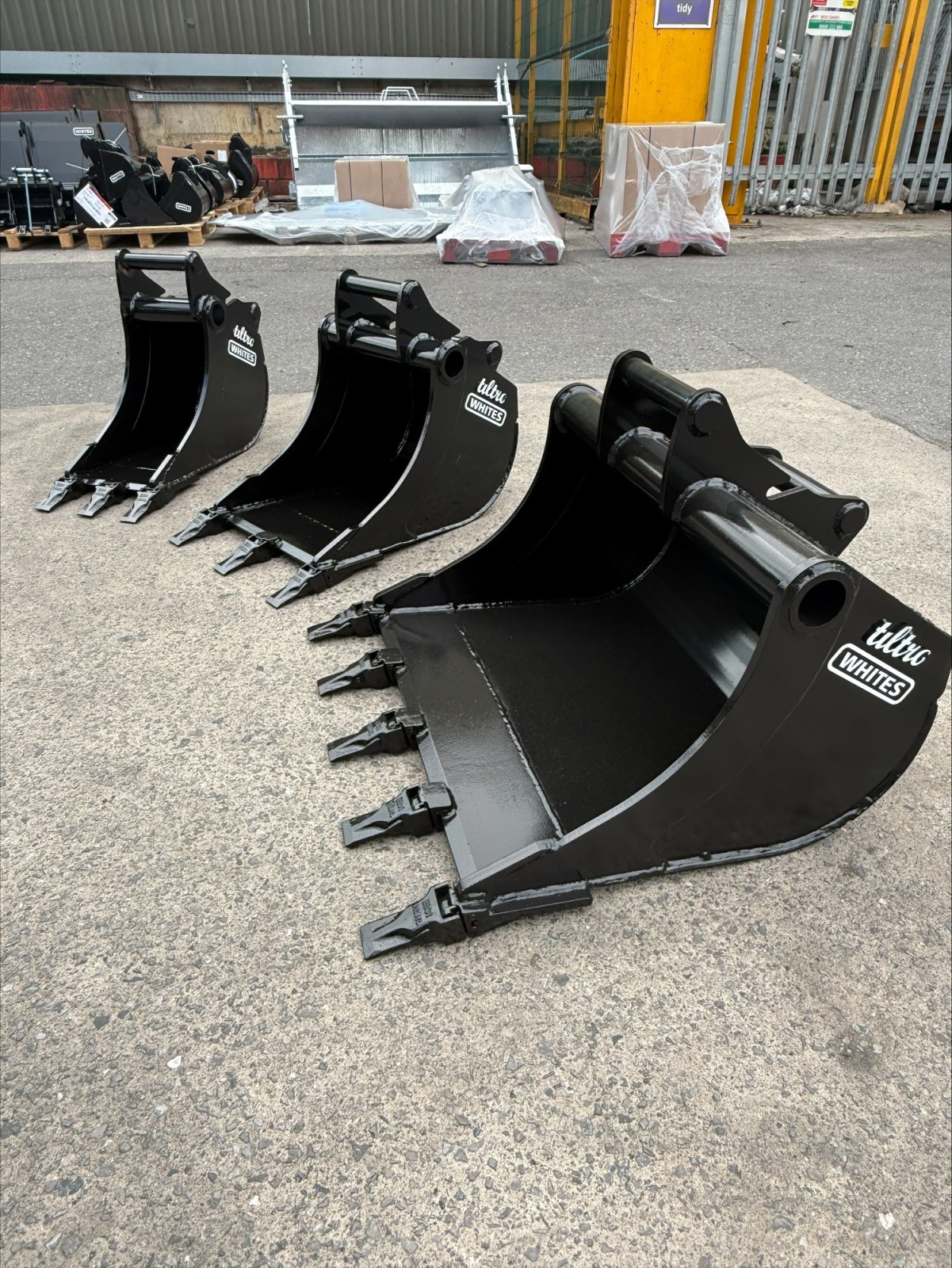

GALLERY
S30 // 2.5T – 3.0T
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |
| TDB3-30-4735 | S30-150 | Digging | – | 300mm | 12” | |
| TDB3-45-4735 | S30-150 | Digging | – | 450mm | 18” | |
| TDB3-60-4735 | S30-150 | Digging | – | 600mm | 24” | |
| TDB3-75-4735 | S30-150 | Digging | – | 750mm | 30” | |
| TTDB3-30-4735 | S30-150 | Digging | YES | 300mm | 12” | |
| TTDB3-45-4735 | S30-150 | Digging | YES | 450mm | 18” | |
| TTDB3-60-4735 | S30-150 | Digging | YES | 600mm | 24” | |
| TTDB3-75-4735 | S30-150 | Digging | YES | 750mm | 30” | |
| TSB3-9013-4735 | S30-150 | Shaping / Grading | – | 900mm | 36′ | 130 |
| TSB3-1120-4735 | S30-150 | Shaping / Grading | – | 1100mm | 43′ | 200 |
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |
| TDB3-30-4738 | S30-180 | Digging | – | 300mm | 12” | |
| TDB3-45-4738 | S30-180 | Digging | – | 450mm | 18” | |
| TDB3-60-4738 | S30-180 | Digging | – | 600mm | 24” | |
| TDB3-75-4738 | S30-180 | Digging | – | 750mm | 30” | |
| TTDB3-30-4738 | S30-180 | Digging | YES | 300mm | 12” | |
| TTDB3-45-4738 | S30-180 | Digging | YES | 450mm | 18” | |
| TTDB3-60-4738 | S30-180 | Digging | YES | 600mm | 24” | |
| TTDB3-75-4738 | S30-180 | Digging | YES | 750mm | 30” | |
| TSB3-9013-4738 | S30-180 | Shaping / Grading | – | 900mm | 36′ | 130 |
| TSB3-1120-4738 | S30-180 | Shaping / Grading | – | 1100mm | 43′ | 200 |
S40 // 2.5T – 3.0T
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |

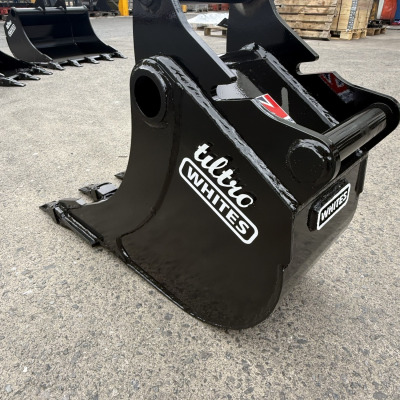

| TDB3-30-4740 | S40-200 | Digging | – | 300mm | 12” | |
| TDB3-45-4740 | S40-200 | Digging | – | 450mm | 18” | |
| TDB3-60-4740 | S40-200 | Digging | – | 600mm | 24” | |
| TDB3-75-4740 | S40-200 | Digging | – | 750mm | 30” | |

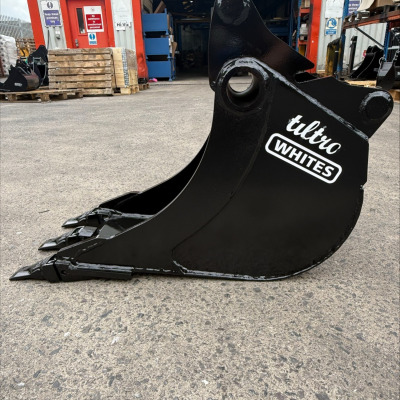

| TTDB3-30-4740 | S40-200 | Digging | YES | 300mm | 12” | |
| TTDB3-45-4740 | S40-200 | Digging | YES | 450mm | 18” | |
| TTDB3-60-4740 | S40-200 | Digging | YES | 600mm | 24” | |
| TTDB3-75-4740 | S40-200 | Digging | YES | 750mm | 30” | |
| TSB3-9013-4740 | S40-200 | Shaping / Grading | – | 900mm | 36′ | 130 |
| TSB3-1120-4740 | S40-200 | Shaping / Grading | – | 1100mm | 43′ | 200 |
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |
| TDB3-30-4744 | S40-240 | Digging | – | 300mm | 12” | |
| TDB3-45-4744 | S40-240 | Digging | – | 450mm | 18” | |
| TDB3-60-4744 | S40-240 | Digging | – | 600mm | 24” | |
| TDB3-75-4744 | S40-240 | Digging | – | 750mm | 30” | |
| TTDB3-30-4744 | S40-240 | Digging | YES | 300mm | 12” | |
| TTDB3-45-4744 | S40-240 | Digging | YES | 450mm | 18” | |
| TTDB3-60-4744 | S40-240 | Digging | YES | 600mm | 24” | |
| TTDB3-75-4744 | S40-240 | Digging | YES | 750mm | 30” | |
| TSB3-9013-4744 | S40-240 | Shaping / Grading | – | 900mm | 36′ | 130 |
| TSB3-1120-4744 | S40-240 | Shaping / Grading | – | 1100mm | 43′ | 200 |
S40 // 5.0T – 6.0T
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |
| TDB5-30-4740 | S40-200 | Digging | – | 300mm | 12” | |
| TDB5-45-4740 | S40-200 | Digging | – | 450mm | 18” | |
| TDB5-60-4740 | S40-200 | Digging | – | 600mm | 24” | |
| TDB5-75-4740 | S40-200 | Digging | – | 750mm | 30” | |
| TDB5-90-4740 | S40-200 | Digging | – | 900mm | 36″ | |
| TTDB5-30-4740 | S40-200 | Digging | YES | 300mm | 12” | |
| TTDB5-45-4740 | S40-200 | Digging | YES | 450mm | 18” | |
| TTDB5-60-4740 | S40-200 | Digging | YES | 600mm | 24” | |
| TTDB5-75-4740 | S40-200 | Digging | YES | 750mm | 30” | |
| TTDB5-90-4740 | S40-200 | Digging | YES | 900mm | 36″ | |

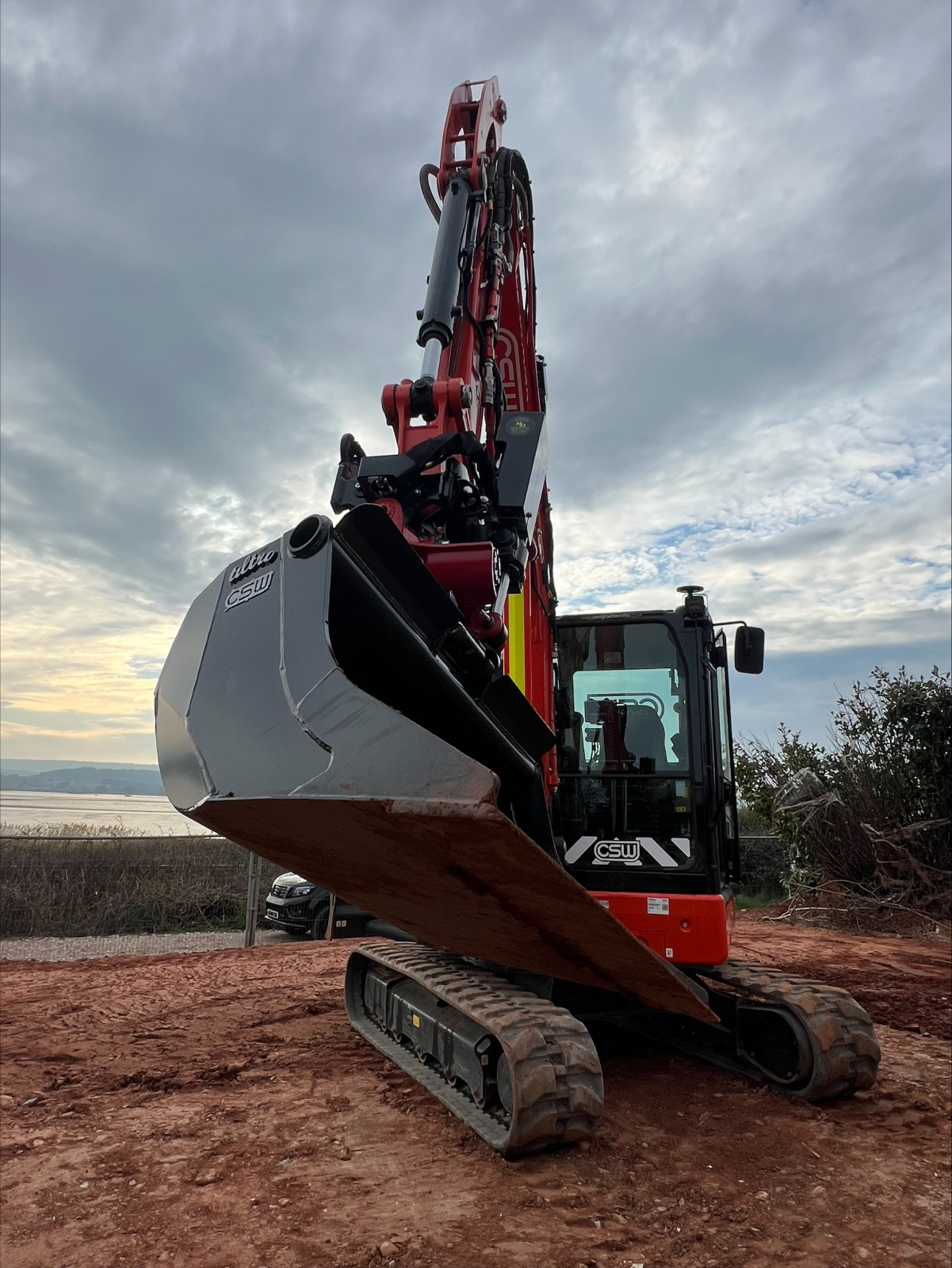

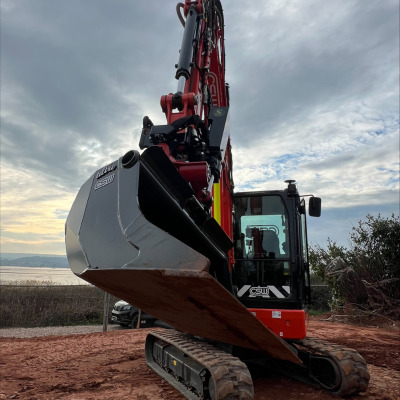

| TSB5-1120-4740 | S40-200 | Shaping / Grading | – | 1100mm | 43′ | 200 |
| TSB5-1225-4740 | S40-200 | Shaping / Grading | – | 1200mm | 48′ | 225 |
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |
| TDB5-30-4744 | S40-240 | Digging | – | 300mm | 12” | |
| TDB5-45-4744 | S40-240 | Digging | – | 450mm | 18” | |
| TDB5-60-4744 | S40-240 | Digging | – | 600mm | 24” | |
| TDB5-75-4744 | S40-240 | Digging | – | 750mm | 30” | |
| TDB5-90-4744 | S40-240 | Digging | – | 900mm | 36″ | |
| TTDB5-30-4744 | S40-240 | Digging | YES | 300mm | 12” | |
| TTDB5-45-4744 | S40-240 | Digging | YES | 450mm | 18” | |
| TTDB5-60-4744 | S40-240 | Digging | YES | 600mm | 24” | |
| TTDB5-75-4744 | S40-240 | Digging | YES | 750mm | 30” | |
| TTDB5-90-4744 | S40-240 | Digging | YES | 900mm | 36″ | |
| TSB5-1120-4744 | S40-240 | Shaping / Grading | – | 1100mm | 43′ | 200 |
| TSB5-1225-4744 | S40-240 | Shaping / Grading | – | 1200mm | 48′ | 225 |
S45 – S50 // 7.0T – 9.0T
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |
| TDB7-30-4745 | S45 | Digging | – | 300mm | 12” | |
| TDB7-45-4745 | S45 | Digging | – | 450mm | 18” | |
| TDB7-60-4745 | S45 | Digging | – | 600mm | 24” | |
| TDB7-75-4745 | S45 | Digging | – | 750mm | 30” | |
| TDB7-90-4745 | S45 | Digging | – | 900mm | 36″ | |
| TTDB7-30-4745 | S45 | Digging | YES | 300mm | 12” | |
| TTDB7-45-4745 | S45 | Digging | YES | 450mm | 18” | |
| TTDB7-60-4745 | S45 | Digging | YES | 600mm | 24” | |
| TTDB7-75-4745 | S45 | Digging | YES | 750mm | 30” | |
| TTDB7-90-4745 | S45 | Digging | YES | 900mm | 36″ | |
| TSB7-1337-4745 | S45 | Shaping / Grading | – | 1300mm | 51′ | 370 |
| TSB7-1440-4745 | S45 | Shaping / Grading | – | 1400mm | 55′ | 400 |
| Part Number | Fitment | Type | Teeth | Width (mm) | Width (Inches) | Capacity |
| TDB7-30-4750 | S50 | Digging | – | 300mm | 12” | |
| TDB7-45-4750 | S50 | Digging | – | 450mm | 18” | |
| TDB7-60-4750 | S50 | Digging | – | 600mm | 24” | |
| TDB7-75-4750 | S50 | Digging | – | 750mm | 30” | |
| TDB7-90-4750 | S50 | Digging | – | 900mm | 36″ | |
| TTDB7-30-4750 | S50 | Digging | YES | 300mm | 12” | |
| TTDB7-45-4750 | S50 | Digging | YES | 450mm | 18” | |
| TTDB7-60-4750 | S50 | Digging | YES | 600mm | 24” | |
| TTDB7-75-4750 | S50 | Digging | YES | 750mm | 30” | |
| TTDB7-90-4750 | S50 | Digging | YES | 900mm | 36″ | |
| TSB7-1337-4750 | S50 | Shaping / Grading | – | 1300mm | 51′ | 370 |
| TSB7-1440-4750 | S50 | Shaping / Grading | – | 1400mm | 55′ | 400 |
