FLAIL MOWERS
The WHITES Flail Mower is powerful and durable tool for clearing sites of the most dense materials. It’s brutal hammer action makes light work of any branches/brush up to 80mm in diameter.
- Powerful direct drive motor – no case drain line
- Low flow operation
- Swinging hammer design
- Can cut up to 80mm branches/brush
- Roller compactor
- Must be used on single acting hydraulic circuit – ie hammer line free flow return
- Includes bracket, hydraulic hoses and flat faced couplers
MODELS
| Model | Cutting Width | Machine Size | No. Hammers | Max Cut | Max Back Pressure | Oil Flow Range | Drive | Total Weight (Including Hoses & Bracket) |
| FM06-1 | 420mm | 1.5T – 4.0T | 12 | 80mm | 8 bar | 27 – 40 lpm | DIRECT | 120 kg |
| FM10-3 | 850mm | 2.5T – 4.0T | 24 | 80mm | 8 bar | 27 – 40 lpm | DIRECT | 172 kg |
| FM10-5 | 850mm | 5.0T – 6.0T | 24 | 80mm | 8 bar | 30 – 52 lpm | DIRECT | 190 kg |
| FM12-8 | 1000mm | 6.0T – 9.0T | 26 | 80mm | 8 bar | 55 – 100 lpm | BELT | 280 kg |

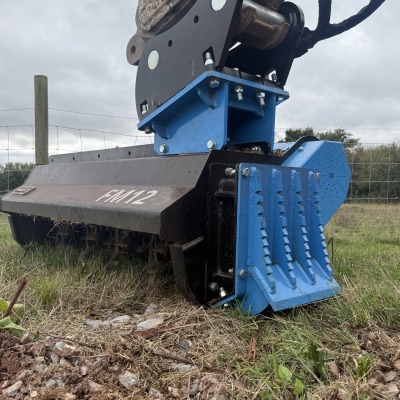

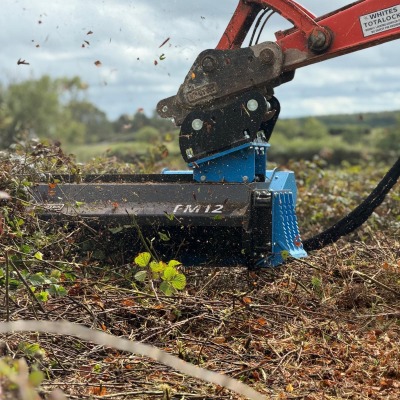

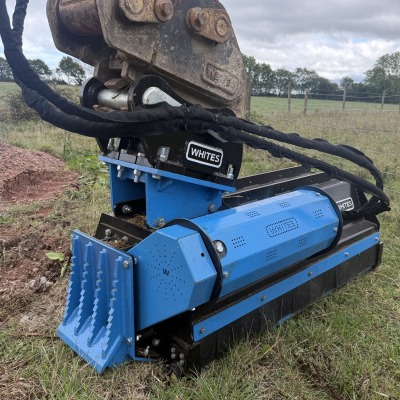

GALLERY
